High-Performance Fish Plates and Fish Bolts: Essential Railway Track Components for Superior Safety and Durability

All Categories

fish plates and fish bolts

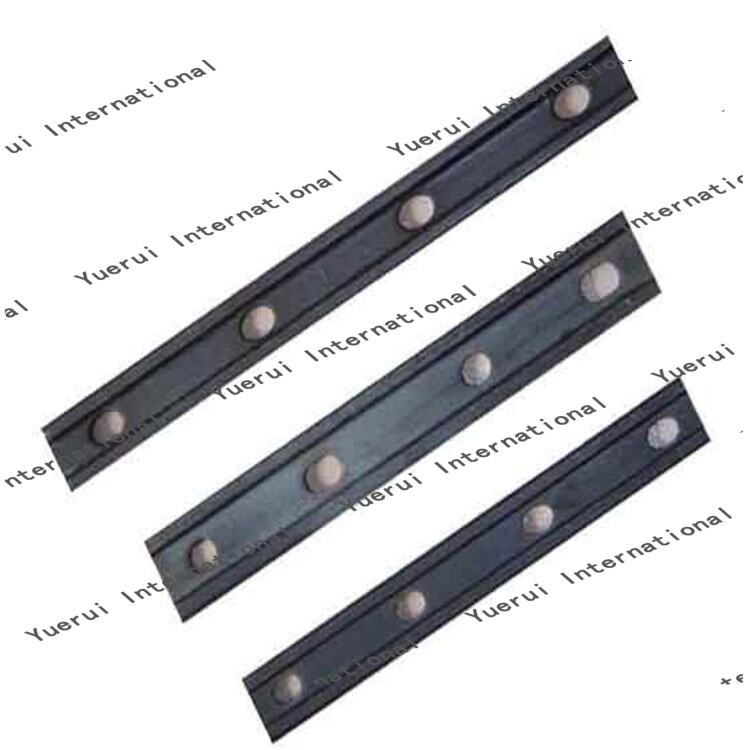

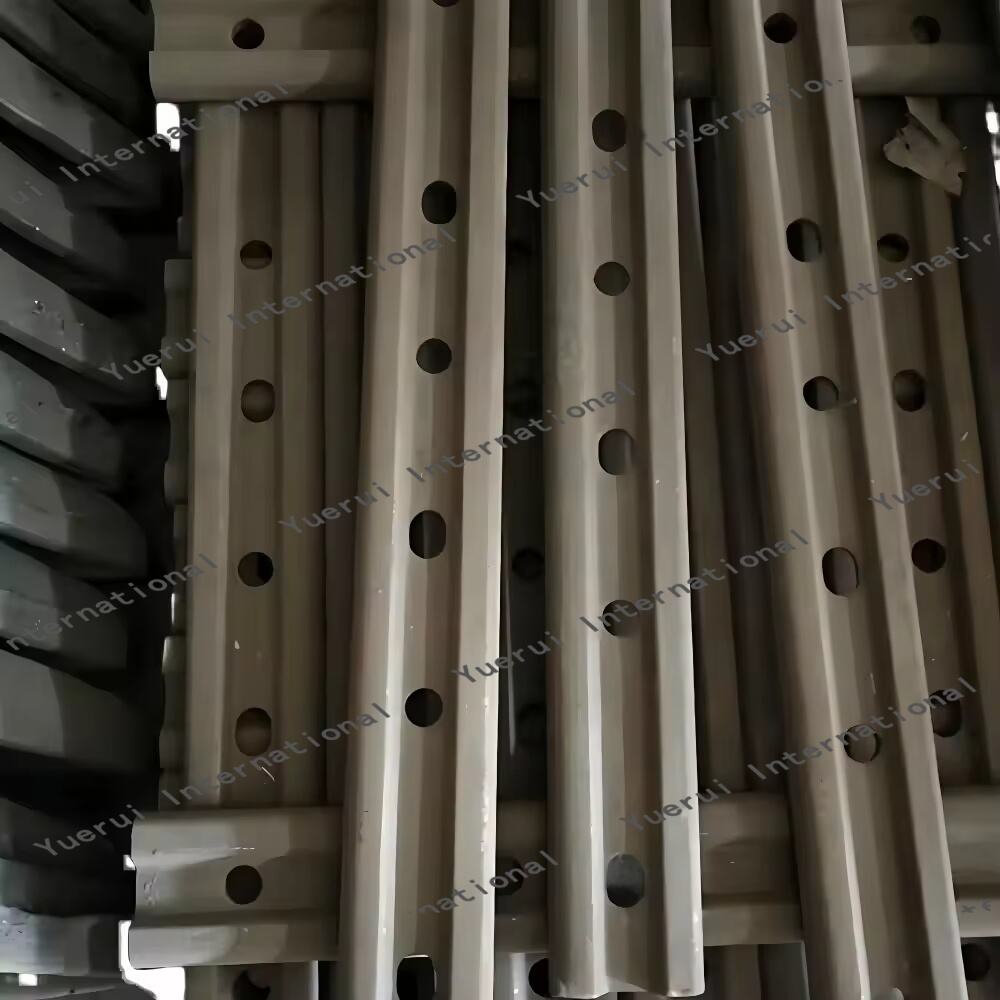

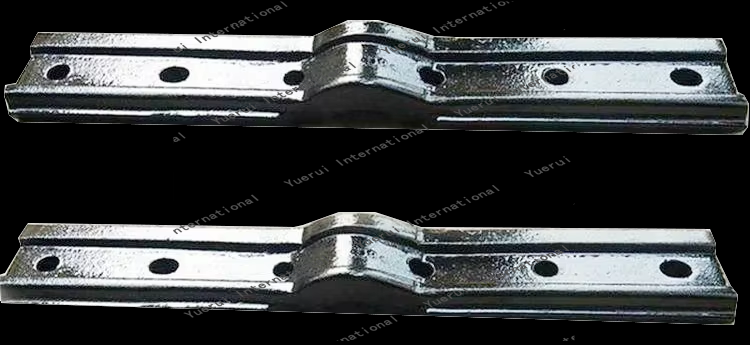

Fish plates and fish bolts are essential components in railway track construction and maintenance, serving as crucial connecting elements that join rail sections together. These components work in tandem to create a secure and continuous rail line. Fish plates, also known as joint bars, are metal plates that span the gap between two rail ends, while fish bolts are specially designed fasteners that secure the fish plates to the rails. The system typically consists of four to six bolts per joint, with two fish plates positioned on either side of the rail web. The plates feature carefully engineered dimensions and bolt holes that align perfectly with the rails, ensuring optimal load distribution and track stability. Modern fish plates are manufactured from high-grade steel, incorporating specific chemical compositions that enhance their durability and resistance to wear and tear. The design includes precise bolt hole spacing and plate thickness calculations to accommodate thermal expansion and contraction of rails while maintaining structural integrity. These components play a vital role in preventing vertical and lateral movement between rail sections, thereby ensuring smooth train passage and reducing maintenance requirements. The technology behind fish plates and fish bolts has evolved to include innovations such as improved surface treatments for corrosion resistance and enhanced bolt locking mechanisms to prevent loosening under vibration.

New Product Recommendations

Fish plates and fish bolts offer numerous advantages that make them indispensable in railway infrastructure. First, they provide exceptional structural stability by creating a robust connection between rail sections, effectively distributing the dynamic loads from passing trains. This connection system allows for natural thermal expansion and contraction of rails while maintaining track alignment and preventing derailment risks. The design simplicity of fish plates and fish bolts makes installation and replacement straightforward, reducing maintenance downtime and associated costs. These components are highly durable, with modern manufacturing techniques ensuring extended service life even under extreme weather conditions and heavy traffic loads. The standardized design allows for universal compatibility across different rail systems, making inventory management and replacement parts sourcing more efficient. Safety is significantly enhanced through the system's ability to maintain proper rail alignment and prevent joint failures. The components feature excellent fatigue resistance, crucial for handling the repetitive stress cycles from passing trains. Cost-effectiveness is achieved through the combination of long service life, minimal maintenance requirements, and the ability to quickly replace individual components rather than entire track sections. The system's design also allows for easy inspection and monitoring of joint conditions, enabling proactive maintenance scheduling and preventing unexpected failures. Additionally, modern fish plates and fish bolts incorporate innovative materials and coatings that provide superior corrosion resistance, reducing the frequency of replacements and maintaining structural integrity over extended periods.

Tips And Tricks

The Ultimate Guide to Bar-spring Clips for Railways

17

Feb

The Ultimate Guide to Bar-spring Clips for Railways

View More
How Bar-spring Clips Enhance Safety in Railway Systems

17

Feb

How Bar-spring Clips Enhance Safety in Railway Systems

View More
The Essential Guide to Fishplates for Railway Tracks

17

Feb

The Essential Guide to Fishplates for Railway Tracks

View More
How Fishplates Ensure Safety and Stability in Railway Systems

17

Feb

How Fishplates Ensure Safety and Stability in Railway Systems

View More

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

fish plates and fish bolts

Superior Structural Integrity

Superior Structural Integrity

The engineering excellence of fish plates and fish bolts lies in their ability to maintain exceptional structural integrity throughout the rail system. These components are manufactured using high-strength steel alloys, specifically formulated to withstand extreme compression, tension, and shear forces. The design incorporates precise calculations for bolt hole placement and plate thickness, ensuring optimal load distribution across the joint. This structural integrity is maintained through innovative surface hardening treatments that enhance wear resistance and prevent material degradation. The system's ability to maintain rail alignment while accommodating thermal expansion is achieved through carefully engineered clearances and bolt tension specifications. This balance between rigidity and flexibility is crucial for preventing rail buckling and maintaining safe operating conditions across varying environmental conditions.
Advanced Corrosion Protection

Advanced Corrosion Protection

Modern fish plates and fish bolts feature state-of-the-art corrosion protection systems that significantly extend their service life. The protective measures begin with the base material selection, utilizing specialized steel grades with inherent corrosion-resistant properties. Surface treatments include advanced galvanization processes that create a durable protective layer, effectively shielding the components from environmental factors. Additional protective coatings are applied using cutting-edge technologies that ensure complete coverage and optimal adhesion. These multiple layers of protection work together to prevent oxidation and degradation, even in harsh environments with high moisture levels or corrosive elements. The corrosion protection system is designed to maintain its effectiveness throughout the components service life, reducing maintenance requirements and ensuring consistent performance.
Enhanced Safety Features

Enhanced Safety Features

Safety is paramount in rail infrastructure, and fish plates and fish bolts incorporate multiple features designed to maximize operational security. The system includes specialized locking mechanisms that prevent bolt loosening under vibration, ensuring joint integrity during train passages. The bolt design incorporates unique thread patterns and locking washers that maintain proper tension over extended periods. Surface texturing on the fish plates provides improved friction coefficients, preventing unwanted movement between components. The system also includes visual inspection indicators that allow maintenance teams to quickly identify potential issues before they become critical. These safety features work together to create a reliable joint system that maintains proper rail alignment and prevents derailment risks. Regular monitoring and maintenance of these safety features is simplified through thoughtful design elements that provide easy access for inspection and adjustment when needed.
